- Place of Origin: Guangdong, China (Mainland)
- Brand Name: JCT
- Model Number: NHZ
BRIEF INTRODUCTION:
Vacuum Kneader, kneader,kneading machine, Z blades mixer. blades kneader.
APPLY TO:
Chewing gum base kneading, rubber base kneading, DOW Corning, Silicone sealant, adhesive, ink, dope, pigment, dye, carbon, CMC, cosmetic, foodstuff, battery, medicine, plastic and other viscosity fluid etc.
CHARACTER:
1) Vacuum Rubber Kneader including the normal pressure, high pressure and vacuum type. mixer
2) Temperature adjustment: heated by oil, steam or ity, cooled by water. mixer
3) Discharge method: tilt dump, bottom dump and screw discharge. mixer
4) The seal of shaft agitator is adopted with unique balance construction of vacuum box, Which owns patent.
5) The cover is controlled by hydraulic system. mixer
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: JCT
- Model Number: NHZ

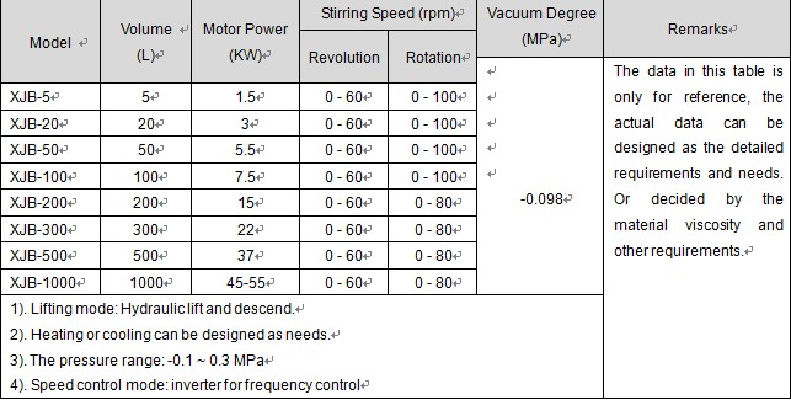

TECHNICAL PARAMETERS:
Model
| Cylinder volum(L) | Drive motor power (KW) | Stirring speed (rpm)
|
Discharge mode
|
Heating
| |||||
Full volume | Feeding amount | Paddle fast / slow paddle | ||||||||
NHZ5 | 5 | 3 | 2.2-4 | 75/50 | Turn cylinder |
Hot oil
|
Power
|
Steam
| ||
NHZ20 | 20 | 12 | 3-5.5 | 63/42 | Turn cylinder | |||||
NHZ50 | 50 | 30 | 4-7.5 | 63/42 | Turn cylinder | |||||
NHZ100 | 100 | 60 | 5.5-7.5 | 43/29 | Turn cylinder | |||||
NHZ200 | 200 | 120 | 7.5-15 | 43/29 |
Turn cylinder |
The material under
|
Screw the material
| |||
NHZ300 | 300 | 180 | 11-18.5 | 43/29 | ||||||
NHZ500 | 500 | 300 | 18.5-30 | 43/29 | ||||||
NHZ1000 | 1000 | 600 | 22-55 | 32/22 | ||||||
NHZ1500 | 1500 | 900 | 30-90 | 32/22 | ||||||
NHZ2000 | 2000 | 1200 | 45-110 | 32/22 | ||||||
Remarks: 1,Temperature range: 0-300° 2, Pressure range:-0.1-0.6MPa | ||||||||||
